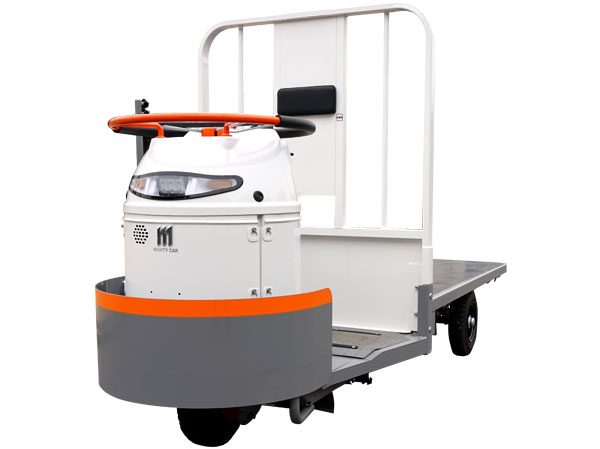

MIGHTY CAR BN-3(STD)
The BN-3 is an electric carrier that was built with safety and convenience in mind, with brake and turn signal lamps included as standard equipment, and a card key for ease of operation. By implementing a gear drive-type drive system, we were also able to reduce maintenance requirements and noise. A rear-view mirror is available as an optional piece of an equipment for customers intending to use the vehicle on public roads.
Bed size:1100x1950
Purpose:Fruits and vegetables
FEATURES
-
Brake lights and turn signals
-
Gear drive-type drive system
-
Rear-view mirror (Optional)
-
-
-
SPECIFICATIONS
| 36V Spec STD-S | 48V Spec R1285-HS (Marine Products Spec) | |||
|---|---|---|---|---|
| Main Dimensions (Body) | Total length (mm) | 3200 | 3100 | |
| Total width（mm） | 1115 | 1215 | ||
| Total height（mm） | 1760 | 1780 | ||
| Bed | Width x Length（mm） | 1100×1950 | 1200×1850 | |
| Height（mm） | 480 | 490 | ||
| Tire Size（mm） | Front/Rear 4.00-8 | Front/Rear 4.00-8 | ||
| 36V Spec STD-S | 48V Spec R1285-HS (Marine Products Spec) | ||
|---|---|---|---|
| Performance | Vehicle Weight（kg） | 750（reference） | 960 |
| Maximum Payload（kg） | 1000（500 when on public roads） | 1000（500 when on public roads） | |
| Top Speed（km/h） | 14.8 | 14.8 | |
| Maximum gradability (degrees) | 7°（with a 1000kg payload） | 7°（with a 1000kg payload） | |
| Minimum turning radius（mm） | 2350（outermost） | 2350（outermost） | |
| Electric Motor | Type | Gear drive | Gear drive |
| Voltage Output | 2.5kw / 60 mins（reference） | 3.0kw / 60 mins（reference） | |
| Control Method | Inverter | Inverter | |
| Power / Battery / Etc | Voltage | 36V | 48V |
| Charging Current | AC100V / 15A | 3-phase AC200V/15A | |
| Location | Onboard | Onboard | |
| Charging Method | Automatic quasi-constant voltage charging | Automatic quasi-constant voltage charging | |
| Battery | EB160×3 | GC200×8 |
